- Lens:Focal Length=7.2mm F/NO=2.8 View Angle=56°
- IR LED:42 pc 940 nm
- Photo resolution:16M
- Video Resolution:1080p
- Trigger time:0.2s-0.6s
- IR range:80ft/25m
- PIR angle:120 degree
- Memory:SD card up to 32GB
- Waterproof:IP66
- Standby Time:about 8 month
- Sensor Element Type:CMOS
- Optical Zoom:Fixed Focus
- Image Stabilization:No
- Special Feature:Weather-resistant
- Screen Size:2.4
- Memory Card Type:SD
- Place of Origin:CN;GUA
- Brand Name:Zecre
- Model Number:PH730A
- MegaPixel:16 MP
Timberland Trail Camera 2.4"LCD with 42pcs 940nm Low-Glow IR LEDs and 120 degree PIR Sensors 0.2s trigger time
Outdoor Trail Camera PH730A Special Features:
- Screen: 2.4 inch LCD screen
- Stand-by Time: Approx: 8 months
- IR angle : 120 degree
- Range of IR Flash: 65ft/20m
- Trigger time: 0.2-0.6s
- Photo Resolution: 16MP
- Video Resolution: 1080p

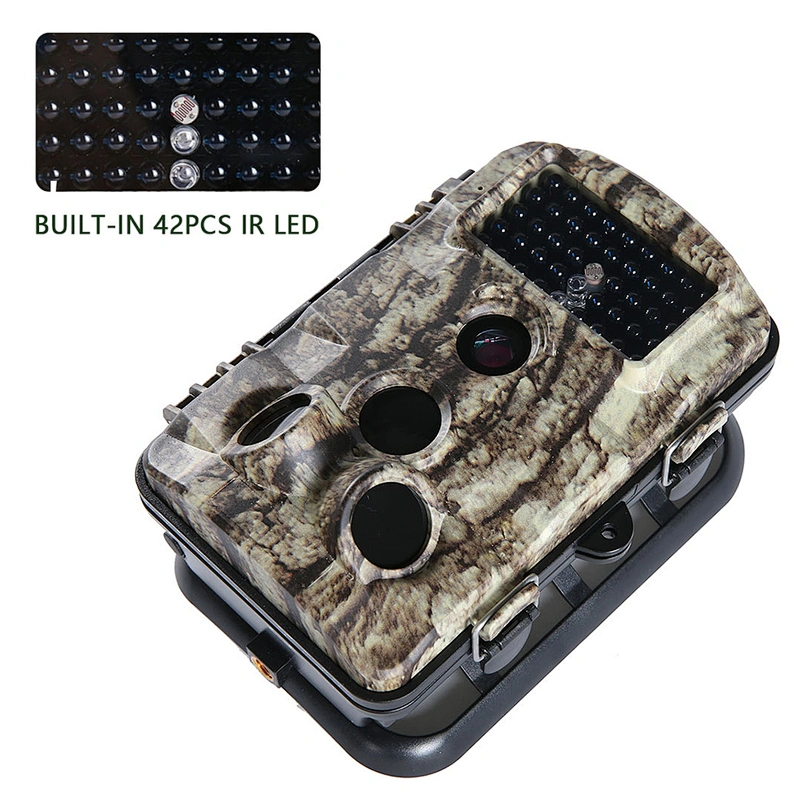

- IR LED: 42pcs ‘Black Low Glow' covert infrared flash LED provides a 65 feet flash range in the dark, which makes it a stealthy unit that does not intrude into the natural habitat.
Outdoor Trail Camera PH730A Specification:
| Lens | Focal Length=7.2mm F/NO=2.8 View Angle=56° |
| Storage Media | SD Card, up to 32GB |
| Mode | Photo Video Photo*Video |
| Photo resolution | 16.0 Mega pixels 12.0 Mega pixels |
| Photo Series | 1Photo 2 Photo in series 3 Photo in series |
| Video resolution | 1080P:1920*1080@15fps 720P: 1280*720@30fps default D1: 720*480@30fps VGA: 640*480P@30fps QVGA:320*240P@30fps |
| File format | JPEG/AVI(H.264) |
| IR Filter | Full Automatic IR Filter |
| TFT LCD Display Screen | 2.4”, 46.75x35.06mm;320(RGB)*240DOT |
| PIR | 120° |
| PIR Sensing Distance | 65ft/20 meters |
| Number of IR LED | 42 IR LEDs |
| Max Night Vision Lighting Distance | 65ft/20 meters |
| Trigger Times | 0.2-0.6 sec super fast trigger times |
| Low Battery Auto Power Off | support |
| Triggering Interval | 5second ~ 60mins (default 60 sec) |
| Date Time Imprint | Yes |
| Moon Phase Imprint | Yes |
| Ambient Temperature Imprint | Yes |
| Serial NO. Imprint | Yes |
| Exposure | Auto |
| Pass Word Set | 4 bit, Digits and 26 alphabet set by yourself |
| Device Serial No. Set | 4 bit, Digits and 26 alphabet set by yourself |
| Time Lapse | support |
| Periodic shot | 0Second~24Hours |
| Stand-by current | Lower than 0.2mA |
| Stand-by Time | Approx 8 months |
| Buit-in MIC | Yes |
| Buit-in Speaker | Yes |
| Interface | External:TV out (NTSC/PAL,MiniUSB); MiniUSB; SD Card Holder; 6V DC Power Jack |
| Fix Method | Bandage,Iron Bracket (1/4 Inch Standard Interface ) |
| Operation Temperature | -25 - 60°C |
| Operating humidity | 5% ~ 90% |
| Power Source | 4-8 AA Battery DC :6V-1.5A |
| Water proof Standard | IP56 |
| Language | English/Deutsch/Dansk/Suomi/Svenska/Espanol/ Francais/Italiano/Nederlands/Portugues/Chinese |
| Security authentication | CE, ROHS, FCC, WEEE |
 |
Shenzhen Zecre Technology Co., Ltd was founded in 2016, covering an area of 1600 square meters.
We are an innovative high-tech company, integrating R&D team of both hardware and software, manufacturing, sales and technology support.
We specialize in outdoor sports digital devices and smart home products, including hunting cameras, courtyard cameras, and other relative image and video products. We provide reliable ODM/OEM service for domestic and oversea clients.
All our products are approved by CE, FCC, RoHS, MSDS and IP56 waterproof certified.
All our designs are identified in European Union Intellectual Property Office, China Mainland and United States, as well. We uphold a strict quality control earn trust from clients and a broadening market.
Our products are available in over 100 countries and regions, and positive feedback received from all our clients. Looking forward to cooperating with you and striving to reach our win-win business era.
Q: When I turn it on it starts counting down from 15 and then shuts off. Why?
A: Please complete all the setting in"TEST"mode and then change it to"ON"mode for working. The LCD screen will count down from 15s and then shuts off to save the power and enter into detecting condition, during recording, no any button can work, any setting or operations must be done in"TEST"mode.
Q: The camera makes some clicking sound when it's working.
A: When the camera detect a critical point of brightness and darkness, the IR CUT will try to switch, please move the lens to a brightness or darkness, it will stop switching and making clicking sound.
Q: How can I format my SD card?
A: Please Kindly format your SD card by going to"TEST"mode, click"MENU"-"Setting"-"Format memory card".
Q: The camera won't turn on.
A: Please check the battery if it was installed properly in a correct way, if you want to test the camera, make sure the switch is on the"TEST"mode (center). Also check the battery if it is in a power conditioned.
Q: The buttons are not working.
A: Please try to switch off again the camera and turn it on again. If the problem stays, try to Reset the camera to default factory settings.
Q: It said SD card is Error.
A: Upload the SD card. Please format the SD card at the first time of use, make sure it's unlocked. Also, make sure that the SD card is new and have enough storage available.
Q: The image is not clear.
A: Please make sure that you remove the screen film protector from the factory to obtain clear images. Clean the lens with soft and dry fabrics.
Q: I did not get any good capturing results./Too many useless images
A: Please check the sensitivity of your PIR sensors, as this function may responsible about capturing methods.
Q: I can't close the inner compartment.
A: Please make sure that the closing parts has no dirt or any small things blocking on it or it was not broken.
Q: Can't recognize by the computer.
A: Make sure that cable connector is working fine, no cuts and opening to avoid malfunctions.
Q: Photos do not capture subject of interest.
A: There are the result of placing the camera in an environment where there is motion associated with tree branches creating motion or an area where there is high heat in the foreground and any motion from wind. Setting a camera up over water is also a potential cause from this issue. To remedy this situation:
1.Try moving the camera to an area that does not have any of these issue.
2.If the camera continues to take images of no interest subject, try placing the camera in an inside environment and aiming at a location where there is no motion.
3.If the camera continues to show issues, please contact our customer service.
Q: Battery life is shorter than expected.
A: 1. Battery life will vary with operating temperature and the number of images take over time. Typically, the camera will be able to capture several thousand images before the battery die.
2. Check to make sure you have used new alkaline batteries.
3. Make sure that the power switch was turned to ON position, not in the TEST mode.
Q: Camera won't take images.
A: 1. Please make sure that the SD card is not full. If the card is full, the camera will stop taking images.
2. Check the batteries to make sure that they are new alkaline.
3. Make sure that the camera power switch is in the ON position, not in OFF or TEST modes.
4. If the SD card has its write protect switch in the lock position, the camera will not take images.
5. If you have used an SD card in another device before, you might try to format the card before using.
Q: Camera won't power up.
A: 1. Make sure that you have installed at least a full set of 4 batteries in correct position.
2. Make sure that the batteries are installed correctly, observing proper polarity.
3. After moving the switch from OFF to TEST or ON, make sure that the switch is correctly in position to ensure the proper mode.
4. Don't move the switch directly from ON to TEST, always move the switch all the way down to OFF first, then back to TEST.
Q: Date/Time Stamps not appearing on images.
A: Make sure that the time stamp parameter is set to"ON"
Q: PIR Sensor LED Flashes/Doesn't Flash.
A: 1. When the camera is in the TEST mode, a special LED on the front of the camera will flash when it senses motion. This is for setup purpose only and will help the user aim the camera.
2. During use, the LED will not flash when the camera takes an image. This is to help keep the camera hidden from game.
Q: Camera won't retain settings.
A: Make sure that you have been saving the changes to any parameter settings that you made while in Setup mode, by pressing OK after changing the setting.
Q: Moisture or Ants inside Camera.
A: 1.To ensure humidity or rain is kept out of the camera secure the DC in plug firmly in place.
2. Ants can be attracted by low level electronic vibrations, and enter through any gaps between the exterior and interior of the camera. Make sure the DC in plug is securely attached.
Q: I tried all the suggestion but it doesn't help at all
A: Please contact our after sales department by email or call.
