- Place of Origin:CN
- Brand Name:Zecre
- Model Number:PH770-3G
- Special Feature:3G, MMS SMTP FTP, Remote Control
- Image resolution:20MP
- Video Resolution:1080P/720P//480/VGA
- Display Screen:2.4"TFT LCD
- Trigger time:0.2-0.6s
- IR LED:940nm Invisible
- LED Quantity:45pcs
- PIR Distance:65ft/20 Meters
- Waterproof:IP66
- Memory Card:Support 4-32GB
WELCOME TO KNOWING MORE ABOUT ZECRE

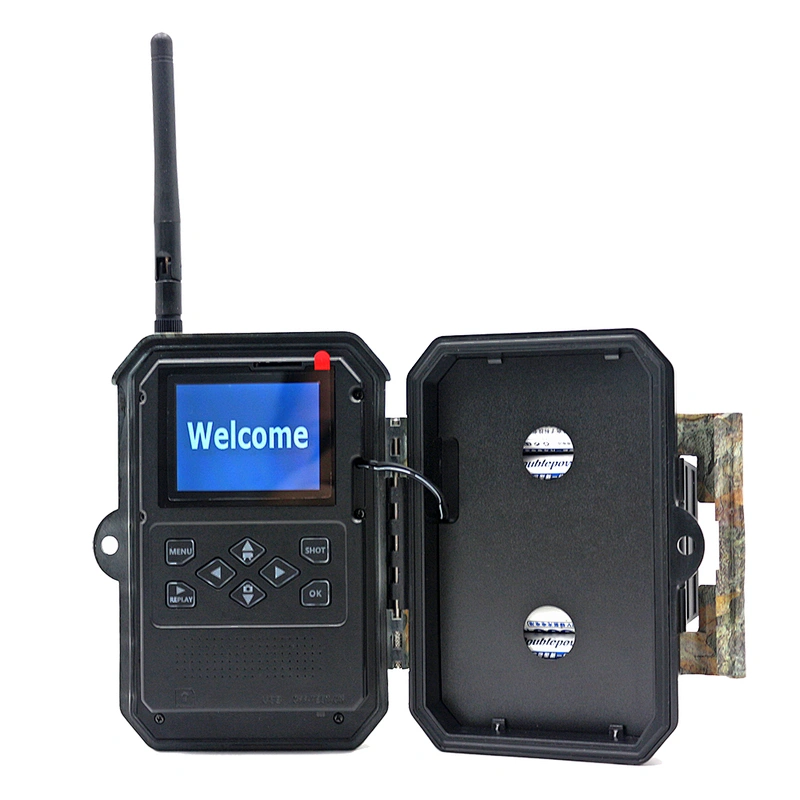

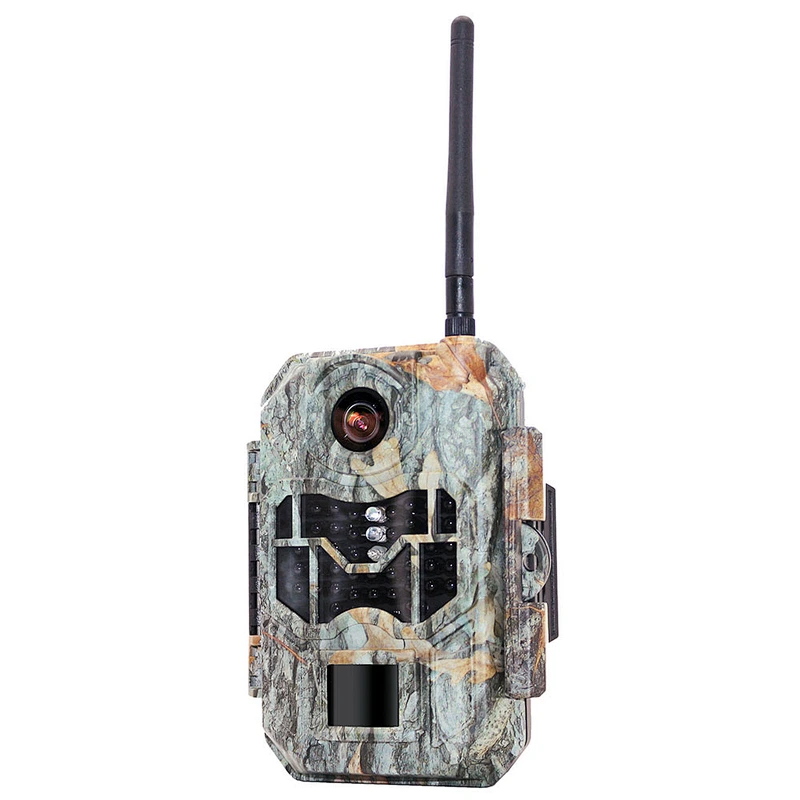

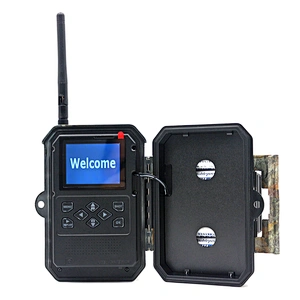

IP66 Waterproof MMS SMTP FTP Functional 20MP 1080P PH770 3G Hunting Trail Camera with Remote Control Trigger
3G Trail Camera Key Features:
Sending pictures real time via MMS/SMTP/FTP
Remote control cameras via SMS
Photo Resolution: 20MP/16MP/12MP/8MP/5MP
Video Resolution: 1080P/720P/480
2.4"TFT LCD Display Screen
8 months standby time
25m triggering distance
25m IR distance
Triggering time: 0.2-0.6 seconds
Specification:
Image sensor | 1/2.5-Inch 5Megapixel(2592*1944) CMOS Sensor |
Lens | Focal Length=4mm F/NO=2.0 View Angle=98° |
Storage Media | SD Card, up to 32GB |
Mode | Photo Video Photo*Video |
Photo resolution | 20.0 Mega pixels 16.0 Mega pixels 12.0 Mega pixels 8.0 Mega pixels 5.0 Mega pixels |
Photo Series | 1Photo 2 Photo in series 3 Photo in series |
Video resolution | 1080P:1920*1080@25fps 720P: 1280*720@30fps default D1: 720*480@30fps VGA: 640*480P@30fps |
Frequency Bands | 3G UMTS/HSPA 850/900/1900/2100 MHz |
Remote Control | SMS |
GPRS transmission | transfer by email |
MMS to phone | 1-4 phone number |
MMS to e-mail | 1-4 email address |
File format | JPEG/AVI(H.264) |
IR Filter: | Full Automatic IR Filter |
TFT LCD Display Screen: | 48x35.69mm (2.36");480(RGB)*234DOT; 16Mcolor |
PIRAngle | 40° |
SidePIRAngle | L:30° R:30° |
PIRtotal Angle | 120° |
PIR Sensing Distance | 65ft/20 meters |
Number of IR LED | 45 IR LEDs |
Max Night Vision Lighting Distance | 65ft/20 meters |
Trigger Times | 0.2-0.6 sec super fast trigger times |
Low Battery Auto Power Off | support |
Triggering Interval | 5second ~ 60mins (default 60 sec) |
Date Time Imprint | Yes |
Moon Phase Imprint | Yes |
Ambient Temperature Imprint | Yes |
Serial NO. Imprint | Yes |
Exposure | Auto |
Pass Word Set | 4 bit, Digits and 26 alphabet set by yourself |
Device Serial No. Set | 4 bit, Digits and 26 alphabet set by yourself |
Time Switch | support |
Periodic shot | 0Second~24Hours |
Stand-by current | Lower than 0.2mA |
Stand-by Time | Approx 6 months |
Buid-in MIC | Yes |
Buid-in Speaker | Yes |
Interface | External:TV out (NTSC/PAL,MiniUSB); MiniUSB; SD Card Holder; 6V DC Power Jack |

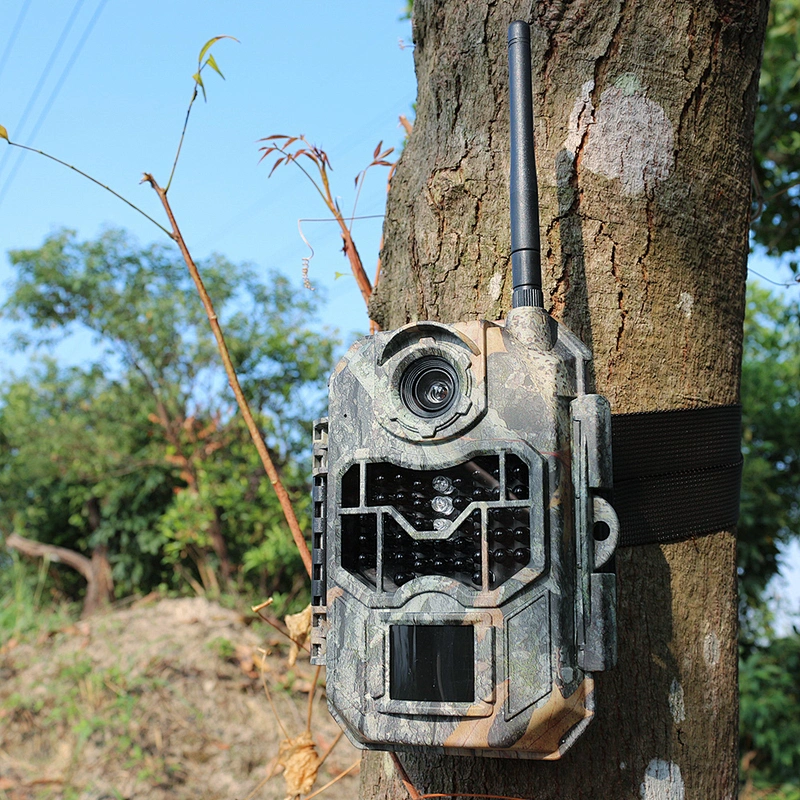

Fix Method | Bandage,Iron Bracket (1/4 Inch Standard Interface ) |
Operation Temperature | -20 - 60°C |
Operating humidity | 5% ~ 90% |
Power Supply | 8 AA Battery DC :12V-2A |
Water proof Standard | IP66 |
Language | English/Deutsch/Dansk/Suomi/Svenska/Espanol/ Francais/Italiano/Nederlands/Portugues/Chinese |
Security authentication | CE, FCC,ROHS,WEEE,MSDS |
-------------------------------- FAQ --------------------------------
Q: When I turn it on it starts counting down from 15 and then shuts off. Why?
A: Please complete all the setting in"TEST"mode and then change it to"ON"mode for working. The LCD screen will count down from 15s and then shuts off to save the power and enter into detecting condition, during recording, no any button can work, any setting or operations must be done in"TEST"mode.
Q: The camera makes some clicking sound when it's working.
A: When the camera detect a critical point of brightness and darkness, the IR CUT will try to switch, please move the lens to a brightness or darkness, it will stop switching and making clicking sound.
Q: How can I format my SD card?
A: Please Kindly format your SD card by going to"TEST"mode, click"MENU"-"Setting"-"Format memory card".
Q: The camera won't turn on.
A: Please check the battery if it was installed properly in a correct way, if you want to test the camera, make sure the switch is on the"TEST"mode (center). Also check the battery if it is in a power conditioned.
Q: The buttons are not working.
A: Please try to switch off again the camera and turn it on again. If the problem stays, try to Reset the camera to default factory settings.
Q: It said SD card is Error.
A: Upload the SD card. Please format the SD card at the first time of use, make sure it's unlocked. Also, make sure that the SD card is new and have enough storage available.
Q: The image is not clear.
A: Please make sure that you remove the screen film protector from the factory to obtain clear images. Clean the lens with soft and dry fabrics.
Q: I did not get any good capturing results./Too many useless images
A: Please check the sensitivity of your PIR sensors, as this function may responsible about capturing methods.
Q: I can't close the inner compartment.
A: Please make sure that the closing parts has no dirt or any small things blocking on it or it was not broken.
Q: Can't recognize by the computer.
A: Make sure that cable connector is working fine, no cuts and opening to avoid malfunctions.
Q: Photos do not capture subject of interest.
To remedy this situation:
1.Try moving the camera to an area that does not have any of these issue.
2.If the camera continues to take images of no interest subject, try placing the camera in an inside environment and aiming at a location where there is no motion.
3.If the camera continues to show issues, please contact our customer service.
